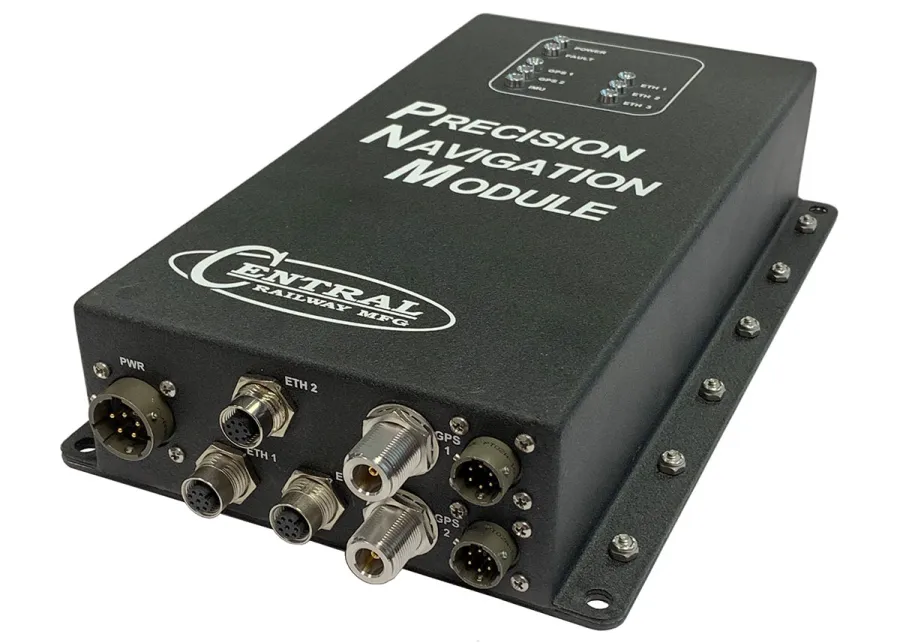

PNM

Precision Navigation Module

REDUNDANT PROCESSING ARCHITECTURE

Versatile architecture that bridges two fully featured multi-constellation GNSS receivers to a precision Inertial Management Unit (IMU)

WIDE RANGE OF SCRIPTING ENGINES

The PNM supports a number of scripting engines, such as Python®, to enable all manner of customer-driven processing and rules functions without the need for additional cards.

Image module
ACCESS TO RAW DATA STREAMS

The CRM PNM not only conforms to industry-driven precision navigation standards, but also allows customers to gain direct access to raw data streams such as IMU and accelerometer data simultaneously as the PNM performs dead-reckoning functions with these streams.

STATE-OF-THE-ART QUAD CORE

The CRM PNM is a powerful standalone locomotive edge processing platform that boasts a state-of-the-art quad-core applications processor capable of hosting Linux customer data mining, analytics, routing, and locomotive configuration management applications with up to 32GBytes of user storage.

Image module
REDUNDANT PROCESSING ARCHITECTURE

Versatile architecture that bridges two fully featured multi-constellation GNSS receivers to a precision Inertial Management Unit (IMU)

WIDE RANGE OF SCRIPTING ENGINES

The PNM supports a number of scripting engines, such as Python®, to enable all manner of customer-driven processing and rules functions without the need for additional cards.

ACCESS TO RAW DATA STREAMS

The CRM PNM not only conforms to industry-driven precision navigation standards, but also allows customers to gain direct access to raw data streams such as IMU and accelerometer data simultaneously as the PNM performs dead-reckoning functions with these streams.

STATE-OF-THE-ART QUAD CORE

The CRM PNM is a powerful standalone locomotive edge processing platform that boasts a state-of-the-art quad-core applications processor capable of hosting Linux customer data mining, analytics, routing, and locomotive configuration management applications with up to 32GBytes of user storage.

The PNM is a fully featured AAR-S9102 and S9103 precision positioning and locomotive time solution, capable of connecting dual-GNSS and time-based inertial functions to Ethernet on-board networks.

Insight into PNM Technology

The CHMM employs a modular yet scalable architecture that permits capacity configurations to range from 2GB up to 1 TB, allowing the end-user to cost-optimize memory requirements to their specific application. For event or video storage applications, the CHMM can be configured to support the following upload interfaces:

  • 10/100/1000Mbps Ethernet
  • RS-232 Asynchronous
  • RS-422/485 Synchronous/Asynchronous
  • USB 2.0 device/host
  • USB 3.0 device

For data downloads that can be initiated both locally and remotely via one of the network connections, the CHMM supports up to 1000Mbps Ethernet. The CHMM also provides a unique automated walk-up USB interface with optional secure authentication. With this interface, when a properly authenticated thumb drive is inserted into the CHMM, the CHMM will automatically download a user-configurable portion of the hardened memory directly to the drive.

Your Data at Your Fingertips

Offloaded data files are easily converted to viewable text tables with the CRM Desktop Application (CDA), or can be viewed graphically with the CRM Desktop Player (CDP). In the case of automated downloads, data can be decoded on-the-fly by a user application with CRM’s published data-file format, useful for data flow integration with a real-time database of locomotive operation.

Custom user communications options are available on the CHMM. For legacy serial port applications, most existing locomotive asynchronous and synchronous RS-232 and RS-422 protocols are supported. The CHMM also offers a highly configurable operating system that can support many high-end data upload and download features, such as multiple and simultaneous operating instances of FTP servers or lean versions of Secure Copy (SCP). With these types of interfaces, the CHMM can accommodate the information technology requirements of various types of locomotive data management infrastructures.

Crash Hardened Memory Modules

By focusing on the unique needs of each customer, Central Railway Manufacturing has worked with leaders in the freight transportation industry to turn their PTC event recording requirements into a reality.

Central Railway Manufacturing’s equipment portfolio includes CHMM, a DOT-certified crashworthy memory module for PTC and LDARS event recording applications. Standalone or used in conjunction with the CRM LEAM, the CHMM is part of a flexible event recording strategy ranging from simple FRA-mandated data acquisition to hardened video storage.

Product Leaflet Document

View / Download this product’s leaflet document to learn more or keep a local copy about the details.
