CIM

Communications Interface Module

BRIDGES NETWORKS

Solves legacy connectivity issues by bridging LDARS networks to serial components.

LOW-POWER

Low-power, compact form factor.

Image module
SERIAL DATA MGMT

Serial data such as fuel level and temperature can now be managed with ITC-type agent.

NETWORK FEATURES

“Network” mode for direct network appliance applications.

Image module
BRIDGES NETWORKS

Solves legacy connectivity issues by bridging LDARS networks to serial components.

LOW-POWER

Low-power, compact form factor.

SERIAL DATA MGMT

Serial data such as fuel level and temperature can now be managed with ITC-type agent.

NETWORK FEATURES

“Network” mode for direct network appliance applications.

The CIM solves legacy connectivity issues by bridging LDARS networks to serial components in a low-power, compact form factor.

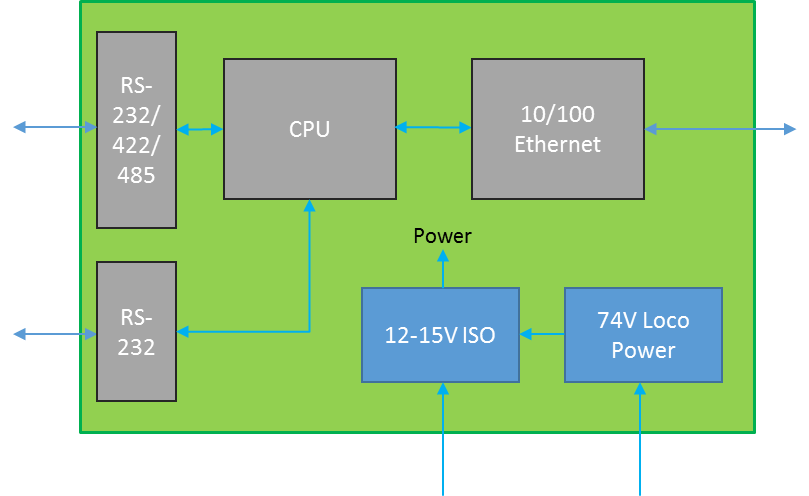

CIM Architecture

  • 1x RS-232 Connection
  • 1x RS-232/422/485 connection
  • 1x 10/100 Ethernet Connection
  • CIM is powered from +74VDC, with an option to use an isolated 12V source
Image module

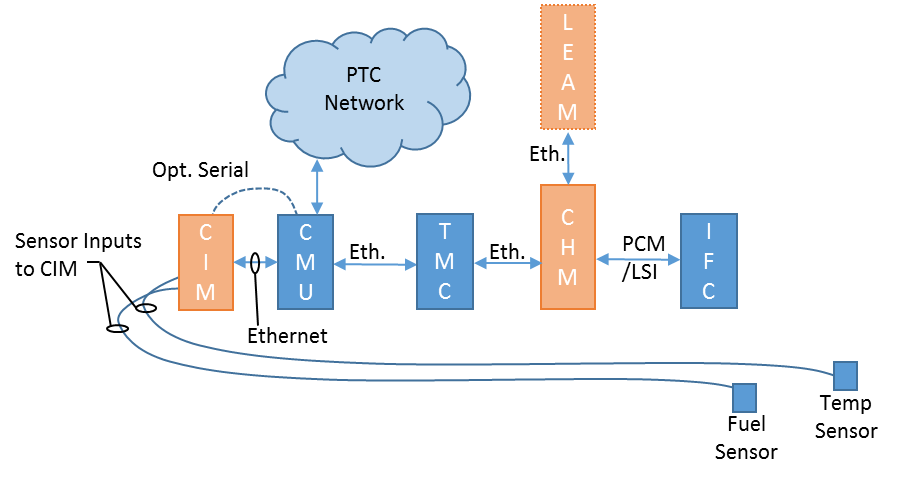

Network Mode Data Flow

  • CIM can connect through the CMU devices, LDARS CHMs, or other switched network devices on the locmotive.
  • Serial data such as fuel level and temperature can now be managed with ITC-type agent or other networking applications / protocols
Image module

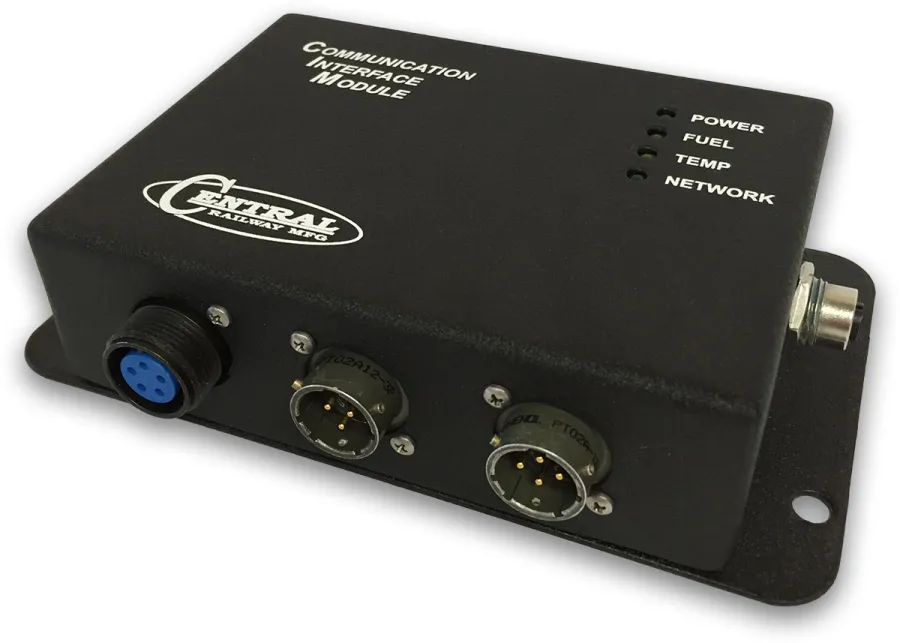

CIM Industrial Design

  • Ulta-low power “Legacy” mode to work by design with Quantum CMU power supply (no Ethernet Connector)
  • “Network” mode adds M12 Ethernet to support direct network appliance applications
  • Network LED is ACT/LNK in network mode; dark in “Legacy” Mode
  • Compact 4½”x6”x1¾” design
